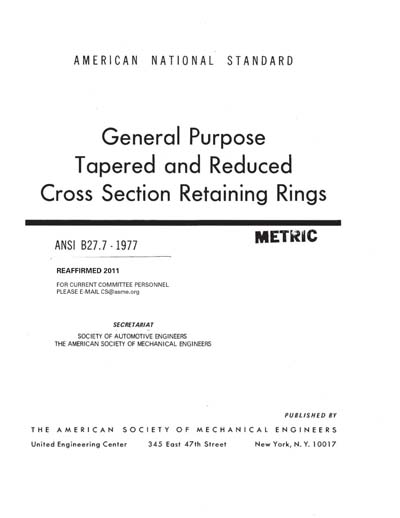

ASME B27.7-1977 (R2011)

General Purpose Tapered and Reduced Cross Section Retaining Rings, Metric

This standard is intended to cover general and dimensional data for three series of general purpose tapered and reduced cross section retaining rings which may be used with the nominal size shafts and housings listed and in grooves of the recommended dimensions listed. Also included are formulas and tolerances on which dimensional data are based. Three appendixes include guidance for assembly and recommended standard drawing formats. The inclusion of dimensional data in this standard is not intended to imply that all of the products described are stock production sizes. Consumers should consult with manufacturers concerning lists of stock production sizes.

CONTENT PROVIDER
American Society of Mechanical Engineers [asme]

Included in Packages
This standard is not included in any packages.
Document History
Amendments & Corrections
We have no amendments or corrections for this standard.
