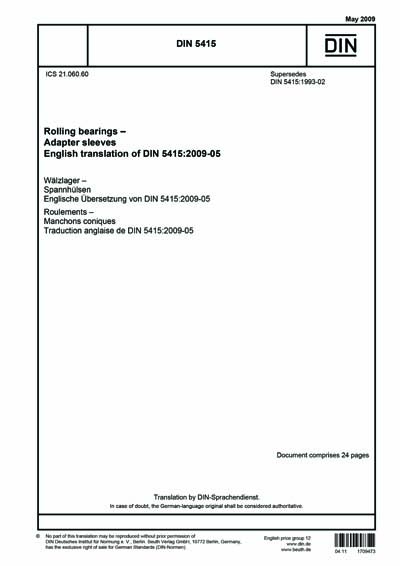

DIN 5415:2009
Rolling bearings - Adapter sleeves
The document (DIN 5415) specifies the dimensions and designations for adapter sleeves with tapers 1:12 and 1:30. Adapter sleeves in this document are suitable to fix rolling bearings mit taper bore 1:12 repectively 1:30 on shafts, mainly in application with self aligning ball bearings according to DIN 630, barrel roller bearings according to DIN 635-1 and spherical roller bearings according to DIN 635-2. Adapter sleeves consists of a sleeve, a locknut according to DIN 981 and a lockwasher according to DIN 5406. Adapter sleeves are delivered completely.
Deutsches Institut für Normung [din]
