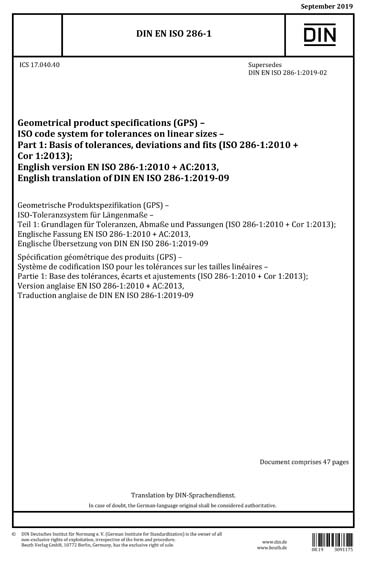

DIN EN ISO 286-1:2019
Geometrical product specifications (GPS) - ISO code system for tolerances on linear sizes - Part 1: Basis of tolerances, deviations and fits (ISO 286-1:2010 + Cor 1:2013); German version EN ISO 286-1:2010 + AC:2013
This part of ISO 286 establishes the ISO code system for tolerances to be used for linear sizes of features of the types cylinder and two parallel opposite surfaces. It defines the basic concepts and the related terminology for this code system. It provides a standardized selection of tolerance classes for general purposes from amongst the numerous possibilities. Additionally, it defines the basic terminology for fits between two features of size without constraints of orientation and location and explains the principles of "basic hole" and "basic shaft".
Deutsches Institut für Normung [din]
