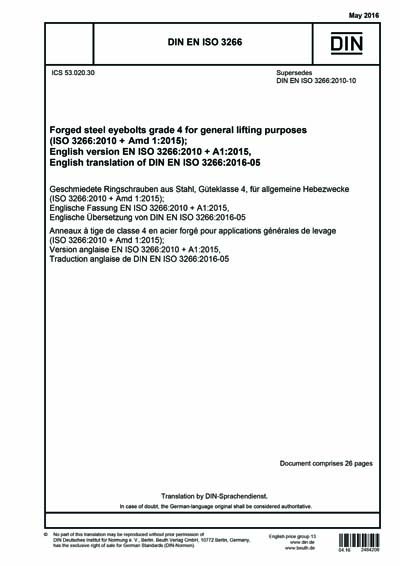

DIN EN ISO 3266:2016

Forged steel eyebolts grade 4 for general lifting purposes (ISO 3266:2010 + Amd 1:2015); German version EN ISO 3266:2010 + A1:2015

This International Standard specifies the general characteristics, performance and critical dimensions necessary for interchangeability and compatibility with other components, of forged steel eyebolts grade 4 for general lifting purposes. These eyebolts can be used for axial and inclined loading. This International Standard specifies the dimensions of the eyes of eyebolts permitting direct connection with shackles of the same working load limit as those defined in ISO 2415. These dimensions also allow designs with a larger eye which can permit direct connection with sling hooks of similar working load limit. This International Standard is applicable to eyebolts grade 4 for use in the temperature range of -20 °C to 200 °C and is not applicable to eyebolts which are not forged in one piece. This Standard is not applicable to forged steel eyebolts grade 4 manufactured before the date of its publication as an International Standard. The new version includes the Amendment 1:2015, which covers modifications of requirements for the static strength test (clause 12.3), the manufacturing proof test (clause 13.1) and the static strength test sampling (clause 13.3.2).
