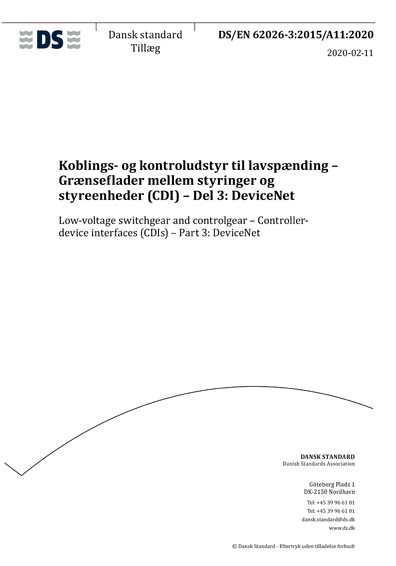

DS/EN 62026-3:2015/A11:2020

Low-voltage switchgear and controlgear - Controller-device interfaces (CDIs) - Part 3: DeviceNet

IEC 62026-3:2014 specifies an interface system between single or multiple controllers, and control circuit devices or switching elements. The interface system uses two conductor pairs within one cable – one of these pairs provides a differential communication medium and the other pair provides power to the devices. This part establishes requirements for the interoperability of components with such interfaces. This third edition of IEC 62026-3 cancels and replaces the second edition published in 2008. This third edition constitutes a technical revision. The main changes with respect to the previous edition are the followings:**- specification of group 4 messages (5.1.2);**- clarifications on messaging protocol (5.2);**- addition of I/O multicast poll messages (5.5.2 and 5.5.8);**- clarifications on slave behaviour (5.5.4 and 5.5.9);**- clarifications on physical layer (transceiver) in 5.7;**- miscellaneous corrections/clarifications on cable (8.2);**- clarifications on EMC testing (9.2.10) and logical testing (9.3).
