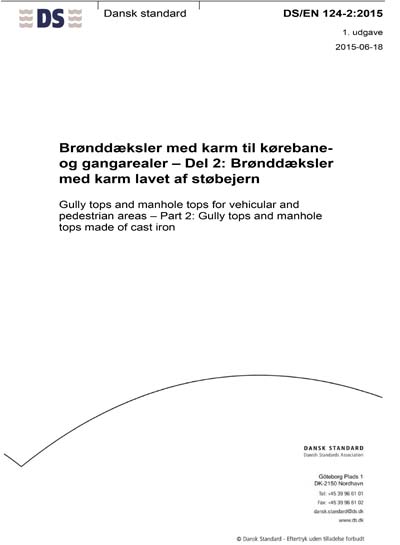

DS/EN 124-2:2015

Gully tops and manhole tops for vehicular and pedestrian areas - Part 2: Gully tops and manhole tops made of cast iron

This European Standard is applicable to gully tops and manhole tops made of flake graphite cast iron and/or spheroidal graphite cast iron whether in combination with concrete or not, with a clear opening up to and including 1 000 mm for covering gullies, manholes and inspection chambers for installation within areas subjected to pedestrian and/or vehicular traffic.**It is applicable to manhole tops and gully tops for use in:**- areas which can only be used by pedestrians and pedal cyclists (at least class A 15),**- pedestrian areas and comparable areas, car parks or car parking decks (at least class B 125),**- the area of kerbside channels of roads which, when measured from the kerb edge, extends a maximum of 0,5 m into the carriageway and a maximum of 0,2 m into the pedestrian area (at least class C 250),**- carriageways of roads (including pedestrian streets), hard shoulders and parking areas, for all types of road vehicles (at least class D 400),**- areas imposing high wheel loads, e.g. docks, aircraft pavements (at least class E 600),**- areas imposing particularly high wheel loads, e.g. aircraft pavements (class F 900).**This European Standard is not applicable in isolation but only in combination with EN 124 1 and gives guidance for combinations of covers/grating made from cast iron with frames according to EN 124 3, EN 124 4, EN 124 5 and EN 124 6.**This European Standard is not applicable to:**- fillings installed on site, e.g. concrete, paving blocks, etc.,**- concave gratings for classes D 400 installed in carriageways of roads and hard shoulders and concave gratings for classes F 900 and E 600,**- gratings/covers as part of prefabricated drainage channels according to EN 1433,**- floor and roof gullies in buildings which are specified in EN 1253 (all parts), and**- surface boxes.
