Historical

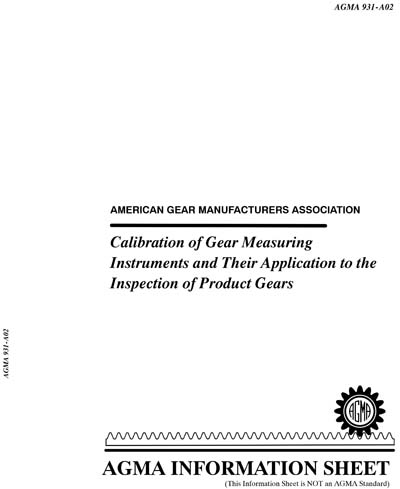

AGMA 931-A02

Calibration of Gear Measuring Instruments and Their Application to the Inspection of Product Gears

Provides guidelines for the alignment of such instrument elements as centers, ways, and probe systems. The instrument accuracy requirements needed to meet the accuracy of product gears is discussed. It also covers the application of gear artifacts to determine instrument accuracy. This involves the calculation of U95 uncertainty at all steps from the artifact to the final product gears. This document serves to supplement current calibration standards ANSI/AGMA 2110-A94, ANSI/AGMA 2113-A97 and ANSI/AGMA 2114-A98.

CONTENT PROVIDER
American Gear Manufacturers Association [agma]
