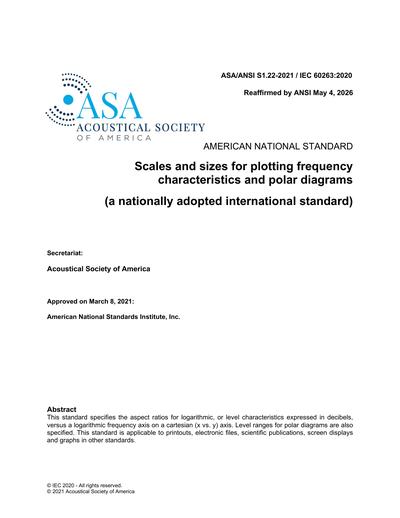

ASA/ANSI S1.22-2021/IEC 60263:2020 (R2026)

Scales and sizes for plotting frequency characteristics and polar diagrams

This standard specifies the aspect ratios for logarithmic, or level characteristics expressed in decibels, versus a logarithmic frequency axis on a cartesian (x vs. y) axis. Level ranges for polar diagrams are also specified. This standard is applicable to printouts, electronic files, scientific publications, screen displays and graphs in other standards.

CONTENT PROVIDER
Acoustical Society of America [asa]

Included in Packages
This standard is not included in any packages.
Document History
Amendments & Corrections
We have no amendments or corrections for this standard.
