Historical

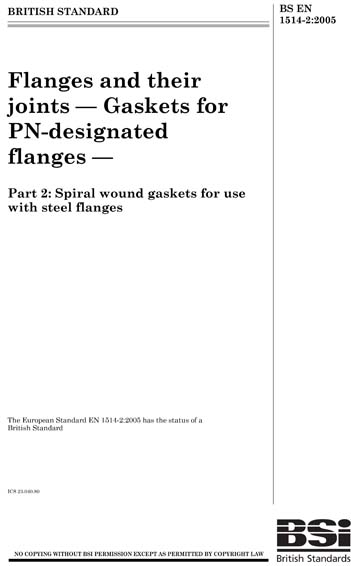

BS EN 1514-2:2005

Flanges and their joints. Dimensions of gaskets for PN-designated flanges. Spiral wound gaskets for use with steel flanges (British Standard)

This European standard specifies the dimensions and marking of spiral wound gaskets for use in conjunction with flat face and raised face flanges complying with EN 1092-1 for PN 10, PN 16, PN 25, PN 40, PN 63 and PN 100 and up to and including DN 900. NOTE 1 Dimensions of other types of gaskets for use with flanges to EN 1092-1, EN 1092-2, prEN 1092-3 and EN 1092-4 are given in EN 1514-1, EN 1514-3, EN 1514-4, prEN 1514-6, prEN 1514-7 and prEN 1514-8. NOTE 2 Annex A lists information that should be supplied by the purchaser when ordering gaskets in circumstances where the choice of the gasket materials appropriate to the service is left to the supplier.

CONTENT PROVIDER
British Standards Institution [bsi]

Included in Packages
This standard is not included in any packages.
Document History
Revises:
  • BS EN 1514-2:1997
Revised By:
Amendments & Corrections
We have no amendments or corrections for this standard.
