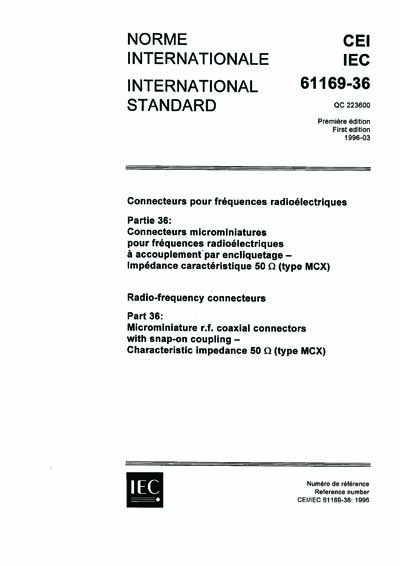

IEC 61169-36 Ed. 1.0 b:1996

Radio-frequency connectors - Part 36: Microminiature r.f. connectors with snap-on coupling - Characteristic impedance 50 Ohms (Type MCX)

Provides information and rules for the preparation of detail specifications for series BMA r.f. connectors together with the pro forma blank detail specification (BDS). Prescribes mating face dimensions for general purpose connectors, dimensional details of standard test connectors grade 0, gauging information and tests selected from QC 220000 (IEC 61169-1) applicable to all detail specifications relating to Type MCX connectors.

CONTENT PROVIDER
International Electrotechnical Commission [iec]

Others Also Bought
Radio-frequency connectors - Part 8: Sectional specification - RF coaxial connectors with inner diameter of outer ...
Radio-frequency connectors - Part 16: Sectional specification - RF coaxial connectors with inner diameter of outer ...
Included in Packages
This standard is not included in any packages.
Document History
We have no document history for this standard.
Amendments & Corrections
We have no amendments or corrections for this standard.
