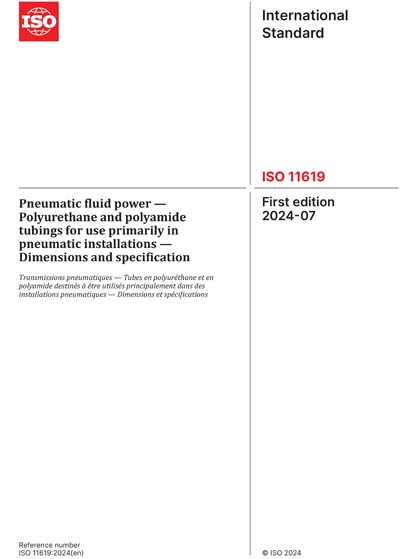

ISO 11619:2024

Pneumatic fluid power - Polyurethane and polyamide tubings for use primarily in pneumatic installations - Dimensions and specification

This document specifies the requirements for flexible thermoplastic polyurethane and polyamide tubing conveying compressed air, in sizes from 3 mm to 16 mm (1/8 inch to 1/2 inch) outside diameter.



Polyurethane tubings are dedicated for use in the temperature range from –20 °C to 60 °C, while polyamide tubings are dedicated for use in the temperature range from 20 °C to 80 °C. Working pressure depends on the tube size, the service temperature (see Table 13 and Table 14) and tubing material (see Table 15 and Table 16).

CONTENT PROVIDER
International Organization for Standardization [iso]

Included in Packages
This standard is not included in any packages.
Document History
Amendments & Corrections
We have no amendments or corrections for this standard.
