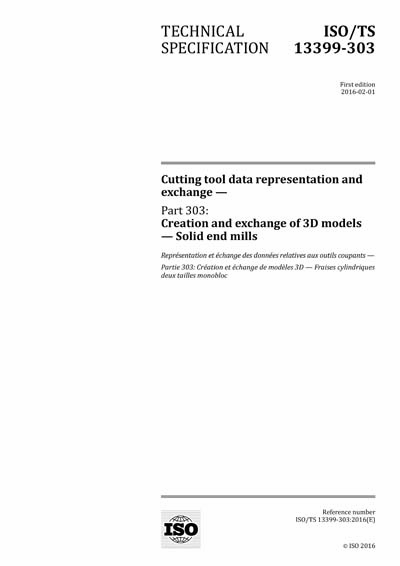

ISO/TS 13399-303:2016
Cutting tool data representation and exchange - Part 303: Creation and exchange of 3D models - Solid end mills
ISO/TS 13399-303:2016 specifies a concept for the design of tool items, limited to solid (non-indexable) end mills, with the usage of the related properties and domains of values.
ISO/TS 13399-303:2016 specifies a common way of design simplified models that contain the following:
- definitions and identifications of the design features of solid (non-indexable) end mills, with a link to the properties used;
- definitions and identifications of the internal structure of the 3D model that represents features and properties of solid (non-indexable) end mills.
The following are outside the scope of this part of ISO/TS 13399:
- applications where these standard data may be stored or referenced;
- creation and exchange of simplified 3D models for cutting tools;
- creation and exchange of simplified 3D models for cutting items;
- creation and exchange of simplified 3D models for other tool items not being described in the scope of this part of ISO/TS 13399;
- creation and exchange of simplified 3D models for adaptive items;
- creation and exchange of simplified 3D models for assembly items and auxiliary items.
