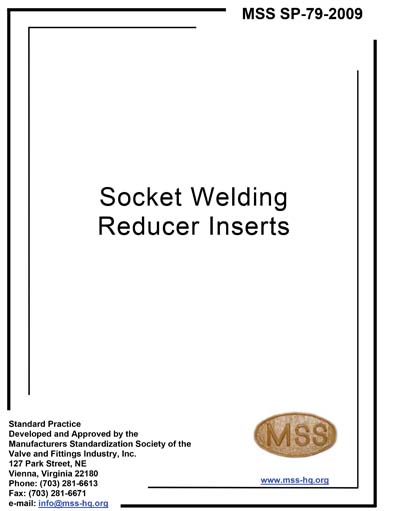

MSS SP-79-2009

Socket Welding Reducer Inserts

Covers ratings, dimensions, tolerances, finish, marking and material requirements for socket welding reducer inserts for use with ASME B16.11, Class 3000 and 6000 socket welding fittings. Dimensions for these reducer inserts are shown in Table 3. Fittings covered by this Standard Practice are shown in Table 1, by class, size range and correlation to the schedule number or wall designation of pipe for calculation of ratings. Fittings with special dimensions and fittings made from nonstandard materials may be designed and manufactured by agreement between the manufacturer and the purchaser, provided they are marked in accordance with the requirements for partial compliance fittings of Section 5.1.1(e). Criteria for selection of fitting type and materials suitable for particular fluid service are not within the scope of this Standard Practice. Except for the CAUTIONARY NOTE (Section 12) and the GAP RECOMMENDATIONS (Figure 1 and Figure 2), installation welding requirements are not within the scope of this Standard Practice. Installation welding shall be done in accordance with the applicable piping system into which the fittings are to be installed.
