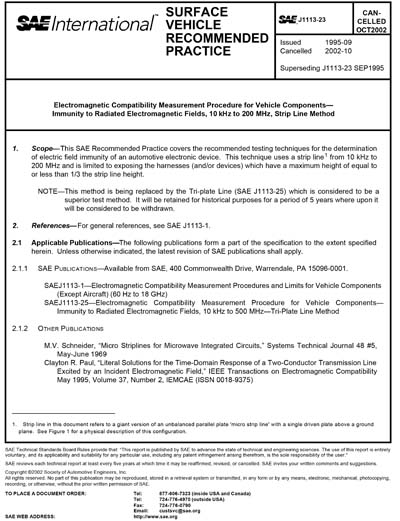

SAE J 1113-23-2002 (SAE J1113-23-2002)
Electromagnetic Compatibility Measurement Procedure for Vehicle Components?Immunity to Radiated Electromagnetic Fields, 10 kHz to 200 MHz, Strip Line Method (Cancelled: Oct 2002)
This SAE Recommended Practice covers the recommended testing techniques for the determination of electric field immunity of an automotive electronic device. This technique uses a strip line{sup}1 from 10 kHz to 200 MHz and is limited to exposing the harnesses (and/or devices) which have a maximum height of equal to or less than 1/3 the strip line height. When J1113-23 was released in 1995, a note was included in the scope regarding the expected life of the document which stated: "This method is being replaced by the Tri-plate Line (SAE J1113-25) which is considered to be a superior method. It will be retained for historical purposes for a period of five years where upon it will be considered to be withdrawn." The committee decided in August 2001 to ballot this document for cancellation.
