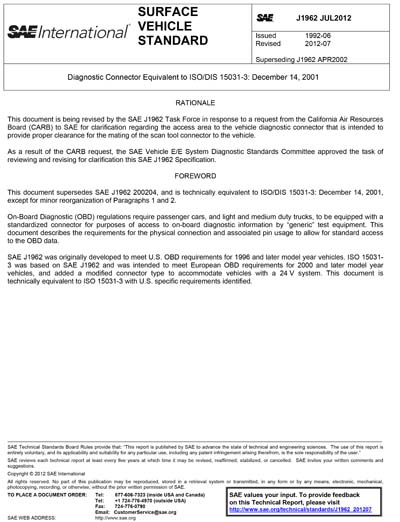

SAE J 1962-2012 (SAE J1962-2012)

Diagnostic Connector Equivalent to ISO/DIS 15031-3:December 14, 2001

This document supersedes SAE J1962 200204, and is technically equivalent to ISO/DIS 15031-3:December 14, 2001.

This document is intended to satisfy the requirements of an OBD connector as required by U.S. On-Board Diagnostic (OBD) regulations. The diagnostic connection specified in this document consists of two mating connectors, the vehicle connector and the external test equipment connector.

This document specifies: a. The functional requirements for the vehicle connector. These functional requirements are separated into four principal areas: connector location/access, connector design, connector contact allocation, and electrical requirements for connector and related electrical circuits; b. The functional requirements for the external test equipment connector. These functional requirements are separated into three principal areas: connector design, connector contact allocation, and electrical requirements for connector and related electrical circuits.
