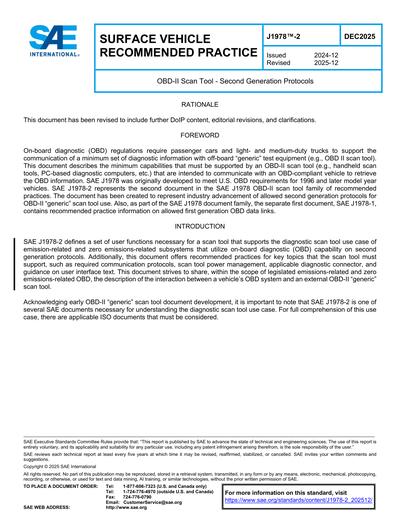

SAE J 1978-2-2025

OBD-II Scan Tool - Second Generation Protocols

SAE J1978-2 specifies a complementary set of functions to be provided by an OBD-II scan tool. These functions provide complete, efficient access to all regulated OBD services on any vehicle that is compliant with SAE J1979-2 and SAE J1979-3.   The content of this document is intended to satisfy the requirements of an OBD-II scan tool as required by current U.S. OBD regulations.   This document specifies:       A means of establishing communications between an OBD-equipped vehicle and an OBD-II scan tool.     A set of diagnostic services to be provided by an OBD-II scan tool in order to exercise the services defined in SAE J1979-2 and SAE J1979-3. In addition, SAE J1978-1 covers first generation protocol functionality defined in SAE J1979 plus automatic protocol determination for all SAE J1979/J1979-2/J1979-3 application content.     The presentation of the SAE J1978 document family, where SAE J1978-2 covers second generation protocol functionality defined in SAE J1979-2 and SAE J1979-3, and SAE J1978-1 covers first generation protocol functionality defined in SAE J1979 and protocol determination for SAE J1979, SAE J1979-2, and SAE J1979-3.   The SAE J1978 document family does not preclude the inclusion of additional capabilities or functions in an OBD-II scan tool. However, it is the responsibility of the OBD-II scan tool designer to ensure that no such capability or function can adversely affect either an OBD-equipped vehicle, which may be connected to the OBD-II scan tool, or an OBD-II scan tool itself.
