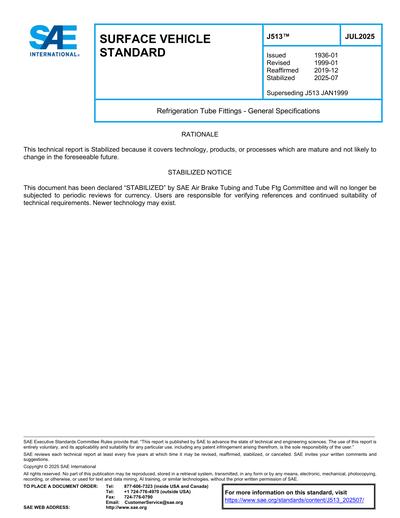

SAE J 513-2025

Refrigeration Tube Fittings - General Specifications

This SAE Standard covers complete general and dimensional specifications for refrigeration tube fittings of the flare type specified in  Figures 1  to  42  and  Tables 1  to  15 . These fittings are intended for general use with flared annealed copper tubing in refrigeration applications.   Dimensions of single and double 45 degree flares on tubing to be used in conjunction with these fittings are given in Figure 2 and Table 1 of SAE J533.   The following general specifications supplement the dimensional data contained in  Tables 1  to  15  with respect to all unspecified details.

CONTENT PROVIDER
Society of Automotive Engineers [sae]

Included in Packages
This standard is not included in any packages.
Document History
Amendments & Corrections
We have no amendments or corrections for this standard.
