Historical

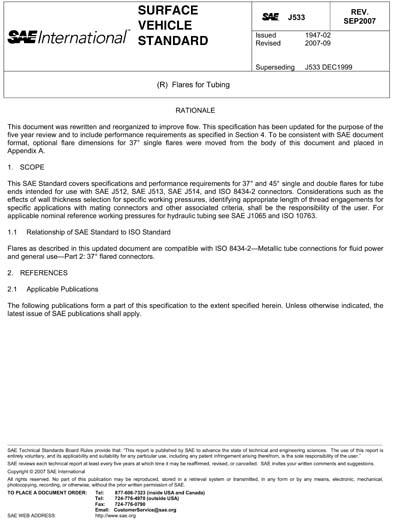

SAE J 533-2007 (SAE J533-2007)

Flares for Tubing

This SAE Standard covers specifications and performance requirements for 37\mD and 45\mD single and double flares for tube ends intended for use with SAE J512, SAE J513, SAE J514, and ISO 8434-2 connectors. Considerations such as the effects of wall thickness selection for specific working pressures, identifying appropriate length of thread engagements for specific applications with mating connectors and other associated criteria, shall be the responsibility of the user. For applicable nominal reference working pressures for hydraulic tubing see SAE J1065 and ISO 10763. Relationship of SAE Standard to ISO Standard Flares as described in this updated document are compatible with ISO 8434-2?Metallic tube connections for fluid power and general use?Part 2: 37\mD flared connectors.

CONTENT PROVIDER
Society of Automotive Engineers [sae]

Others Also Bought
ANSI Z21.18-2007/CSA 6.3-2007 (2012) - Gas Appliance Pressure Regulators
Regulatory compliance mark for electrical and electronic equipment - Specific requirements for particular regulatory ...
Addenda 2 to ANSI Z21.18-2007/CSA 6.3-2007, Gas Appliance Pressure Regulators
Included in Packages
This standard is not included in any packages.
Document History
Revised By:
Amendments & Corrections
We have no amendments or corrections for this standard.
