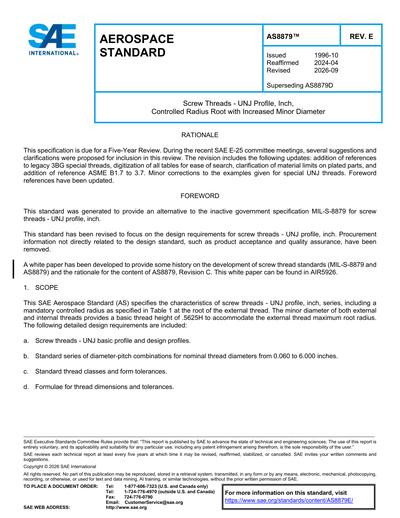

SAE AS 8879E-2026

Screw Threads - UNJ Profile, Inch, Controlled Radius Root with Increased Minor Diameter

This SAE Aerospace Standard (AS) specifies the characteristics of screw threads - UNJ profile, inch, series, including a mandatory controlled radius as specified in  Table 1  at the root of the external thread. The minor diameter of both external and internal threads provides a basic thread height of .5625H to accommodate the external thread maximum root radius. The following detailed design requirements are included:       Screw threads - UNJ basic profile and design profiles.     Standard series of diameter-pitch combinations for nominal thread diameters from 0.060 to 6.000 inches.     Standard thread classes and form tolerances.     Formulae for thread dimensions and tolerances.     Method of designating UNJ threads.     Tables for selected diameter-pitch combinations for close tolerance mechanical thread applications.     Tables for screw thread - UNJ profile thread limit dimensions.

CONTENT PROVIDER
Society of Automotive Engineers [sae]

Included in Packages
This standard is not included in any packages.
Document History
Amendments & Corrections
We have no amendments or corrections for this standard.
