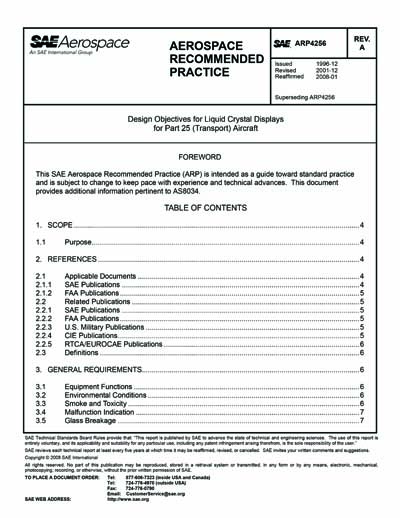

SAE ARP 4256A-2001 (SAE ARP4256A-2001)

Design Objectives for Liquid Crystal Displays for Part 25 (Transport) Aircraft ( Reaffirmed: Jan 2008 )

This document covers monochrome and color LCDs (transmissive, transflective, and reflective), both matrixed and segmented in format, and is applicable to the following types of displays: a. flight and navigation displays; b. engine, systems, and warning devices; and c. control displays. In this document the terms 'LCD', 'LCD Display', 'Display', and 'Instrument' are synonymous and encompass the display system (e.g., LCD device, drivers, backlight, display processor, etc.), not just the device. This document recommends design and performance criteria for liquid crystal displays (LCDs) on the flight deck of aircraft subject to Part 25 certification. It is intended as guidance for the certifying authority. A secondary purpose is to share information about the unique characteristics of LCDs and how they relate to the flight deck.
