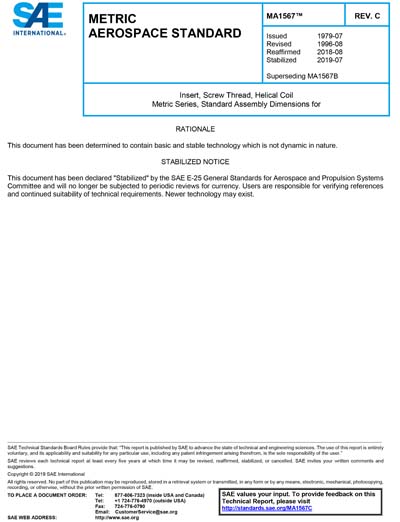

SAE MA 1567C-2019

Insert, Screw Thread, Helical Coil Metric Series, Standard Assembly Dimensions for

This SAE Metric Aerospace Standard (MA) provides for helical coil screw thread inserts, both free running and self-locking, installation screw thread dimensional data and guidance on insert length selection. The document also provides formulas for determining requirements when non standard insert lengths are necessary.
