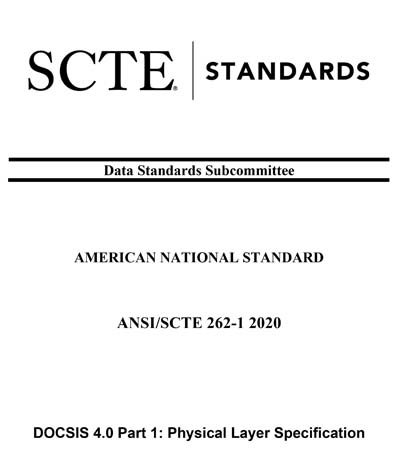

SCTE 262-1 2020
DOCSIS 4.0 Part 1: Physical Layer Specification
This generation of the DOCSIS®1 specifications builds upon the previous generations of DOCSIS specifications (commonly referred to as the DOCSIS 3.1 and earlier specifications), leveraging the existing Media Access Control (MAC) and Physical (PHY) layers. It includes backward compatibility for the existing PHY layers in order to enable a seamless migration to the new technology. Further, the DOCSIS 4.0 specifications introduces Full Duplex (FDX) DOCSIS PHY layer technology as an expansion of the OFDM PHY layer introduced in the DOCSIS 3.1 PHY specification to increase upstream capacity without significant loss of downstream capacity versus DOCSIS 3.1. The DOCSIS 4.0 specification also builds upon DOCSIS 3.1 OFDM and OFDMA technology with an extended Frequency Division Duplex (FDD) DOCSIS alternative. DOCSIS 4.0 FDD supports legacy high split and also provides extended splits up to 684 MHz in an operational band plan which is referred to as Ultra-high Split (UHS). DOCSIS 4.0 FDD also introduces expansion of usable downstream spectrum up to 1794 MHz. Both the FDX and FDD DOCSIS 4.0 alternatives are based on OFDM PHY. Many sections refer to basic OFDM sublayer definitions described in [DOCSIS PHYv3.1].
