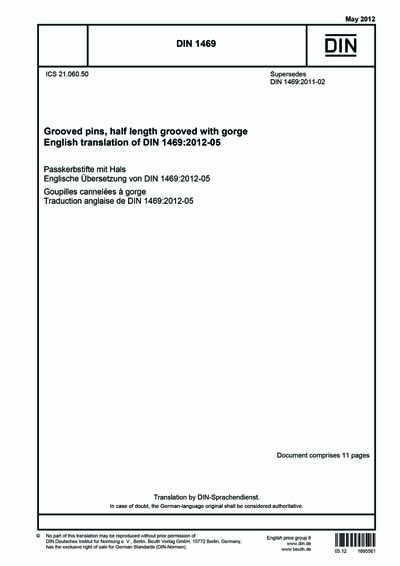

DIN 1469:2012

Grooved pins, half length grooved with gorge

This document applies for grooved pins, half length grooved with gorge, which are used for the collet of snap-ring, retaining washers or springs. These grooved pins have a nominal diameter of d<(Index)1> of 1,5 mm to 25 mm, and are shaped as profil A (with a groove for snap-rings according to DIN 471), profil B (with a groove for retaining washers according to DIN 6799) and profil C (with a rounded groove).

CONTENT PROVIDER
Deutsches Institut für Normung [din]

Included in Packages
This standard is not included in any packages.
Document History
Revises:
Amendments & Corrections
We have no amendments or corrections for this standard.
