Historical

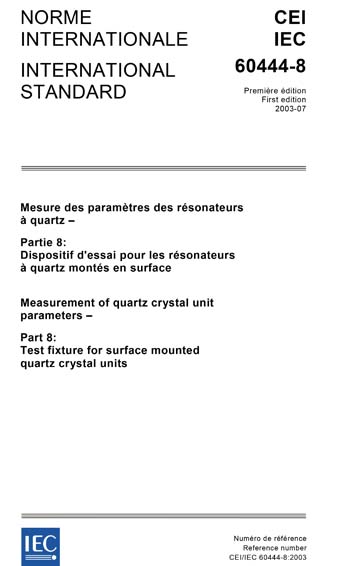

IEC 60444-8 Ed. 1.0 b:2003

Measurement of quartz crystal unit parameters - Part 8: Test fixture for surface mounted quartz crystal units

Explains the test fixture that allows the accurate measurement of resonance frequency, resonance resistance, and equivalent electrical circuit parameters of a leadless surface mounted quartz crystal units over the frequency range from 1 MHz to 150 MHz using zero phase technique as specified in IEC 60444-4 and IEC 60444-5.

CONTENT PROVIDER
International Electrotechnical Commission [iec]

Others Also Bought
Measurement of quartz crystal unit parameters by zero phase technique in a pi-network. Part 2: Phase offset method ...
Measurement of quartz crystal unit parameters - Part 7: Measurement of activity and frequency dips of quartz crystal ...
Measurement of quartz crystal units parameters - Part 5: Methods for the determination of equivalent electrical ...
Included in Packages
This standard is not included in any packages.
Amendments & Corrections
We have no amendments or corrections for this standard.
