Historical

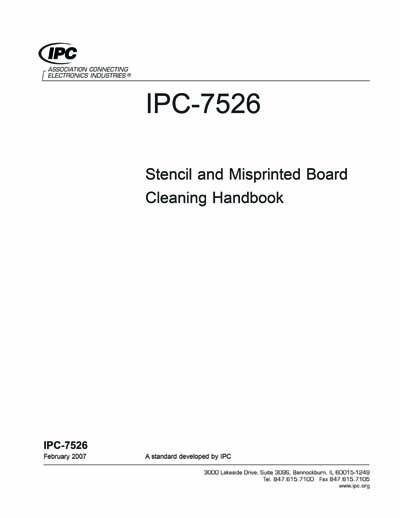

IPC 7526-2007

Stencil and Misprinted Board Cleaning Handbook

Cleaning of stencils and misprinted PCBs has taken an increasingly important role in surface mount technology. Fine and ultra-fine pitch lands, together with other advanced packages, place new demands on stencil cleaning. Paste volume is a critical issue for fine, ultra-fine, chip-scale, BGA and flip-chip components. Insufficient solder due to clogging of stencil apertures is a primary cause of defects. The purpose of this handbook is to provide a basic understanding of stencil/misprint cleaning processes.

CONTENT PROVIDER
Association Connecting Electronics Industries [ipc]

Others Also Bought
Requirements for Soldered Electrical and Electronic Assemblies
In-Process DPMO and Estimated Yield for PCAs
End-Item DPMO for Printed Circuit Board Assemblies
Included in Packages
This standard is not included in any packages.
Document History
Revised By:
Amendments & Corrections
We have no amendments or corrections for this standard.
